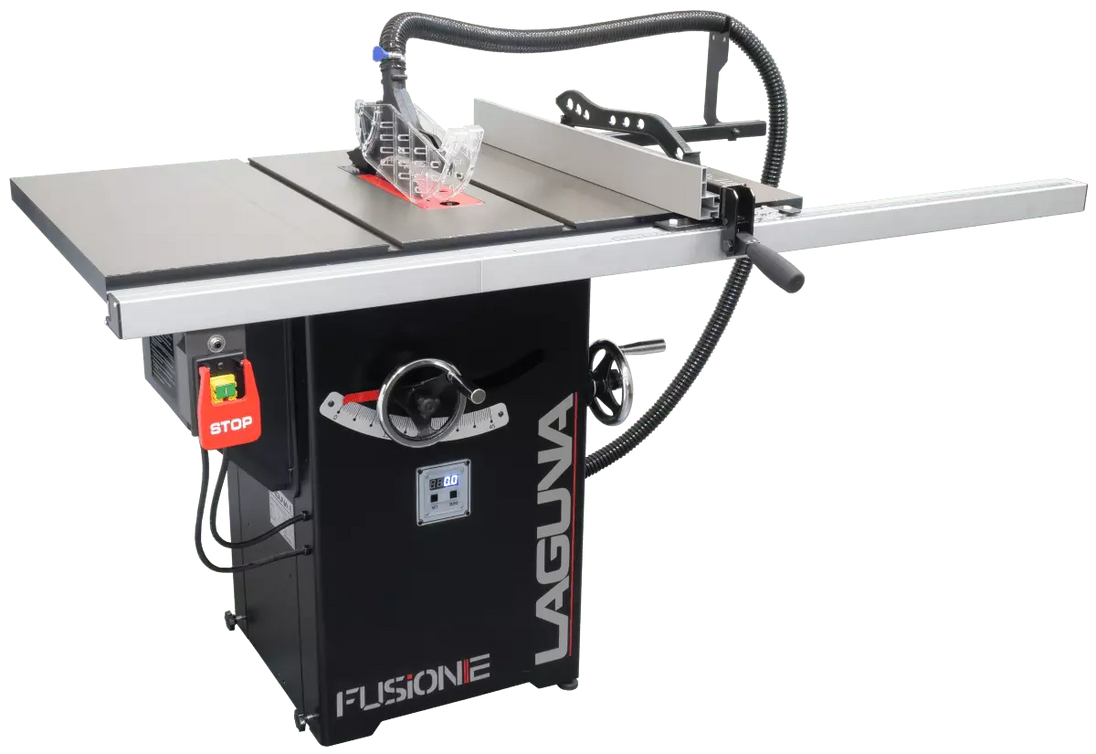

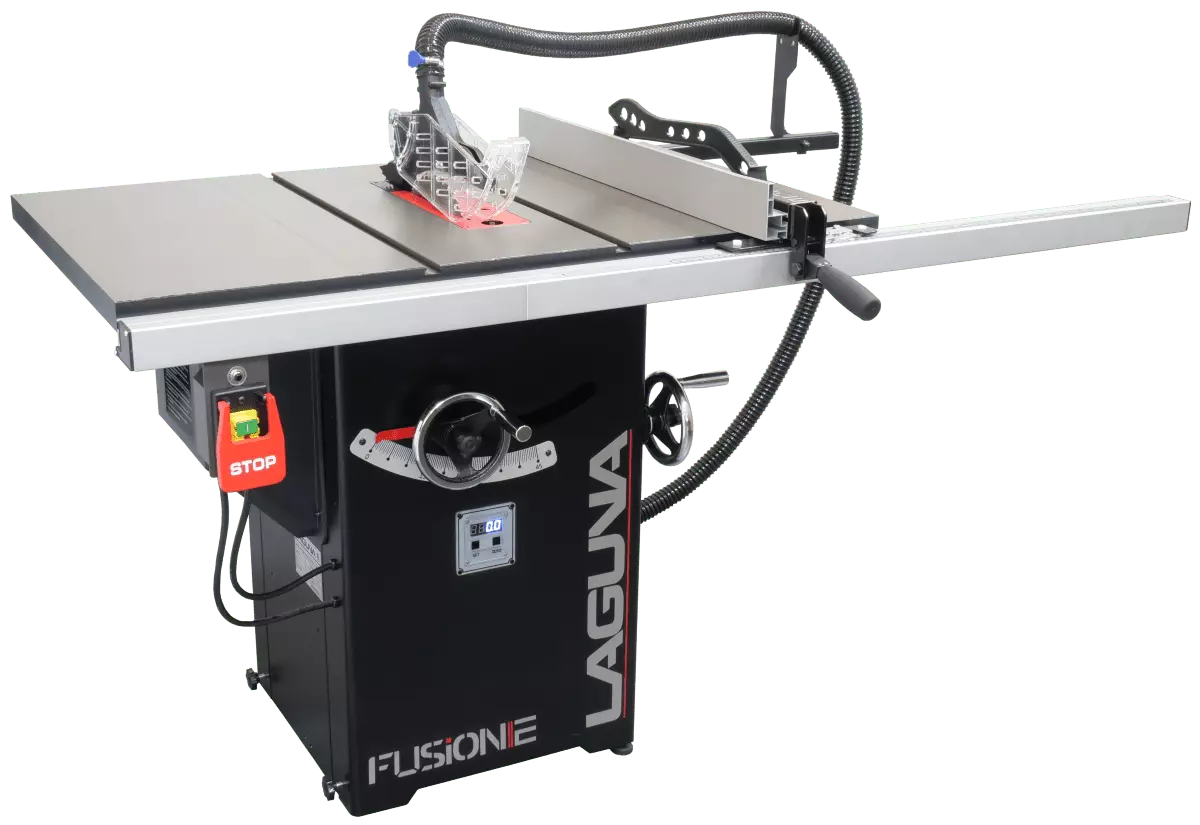

Product Description

The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.

THIS MACHINE IS SOLD EXCLUSIVELY THROUGH OUR DEALER NETWORK

Features:
  • 1.75HP TEFC Motor
  • 110V, Single-Phase, 60Hz Power Requirement
  • Fusion Dust Collection System
  • Cabinet Mounted Design
  • Included Tools & Integrated Tool Storage
  • Included 10 x 40T Carbide-Tipped Blade

Additional Details:

F2 Features

  • Full Cabinet Body
  • Trunion Mounted To Body Not Table
  • Cast Iron Table & Wings
  • European Hi-Lo Fence
  • Overhead Dust Collection
  • Quick-Release Blade Guard & Splitter
  • Riving Knife Included
  • Fence Mounted Push Stick
  • Miter Gauge Included
  • Tool less Blade Lock
  • Integrated Tool Storage
  • Polished Handles
  • 10 x 40T Blade Included
  • Premium Arbor & Motor Bearings
  • Mobility Built Into Cabinet
  • NEMA Plug:  5-15P

Additional Specs

Dust Port Size: 4 in.

Blade Guard Dust Port Size: 1-½″

Table Saw Type: Cabinet

Maximum Blade Diameter: 10″

Arbor Size: ⅝″

Arbor Speed: 4500 RPM

Maximum Width Of Dado: ¾″

Blade Tilt Direction: Left

Max Blade Tilt: 45°

Maximum Depth Of Cut At 90°: 3-⅛″

Maximum Depth Of Cut At 45°: 2-⅛″

Max Rip Right Of Blade With Included Fence & Rails: 37″ *

* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
