Product Description

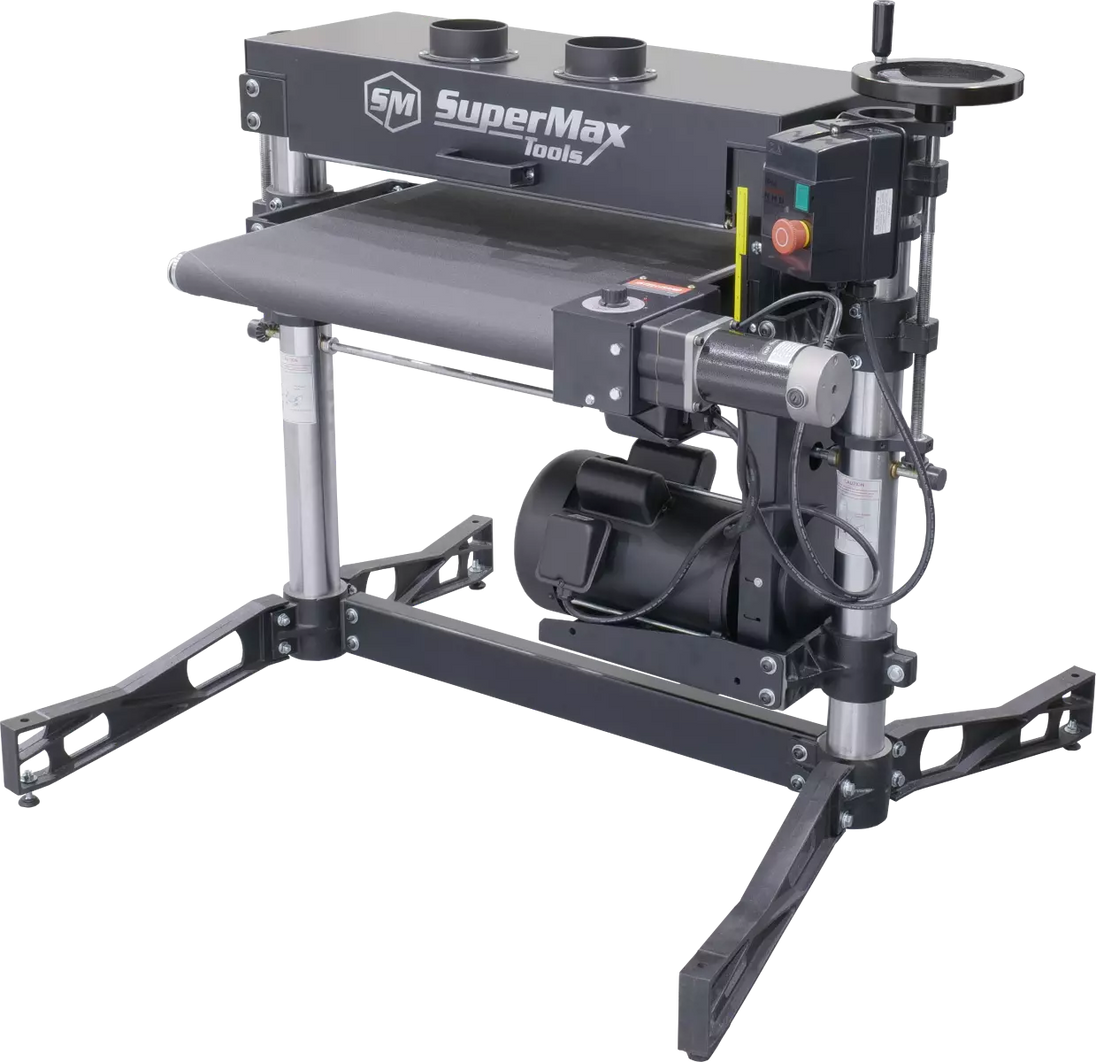

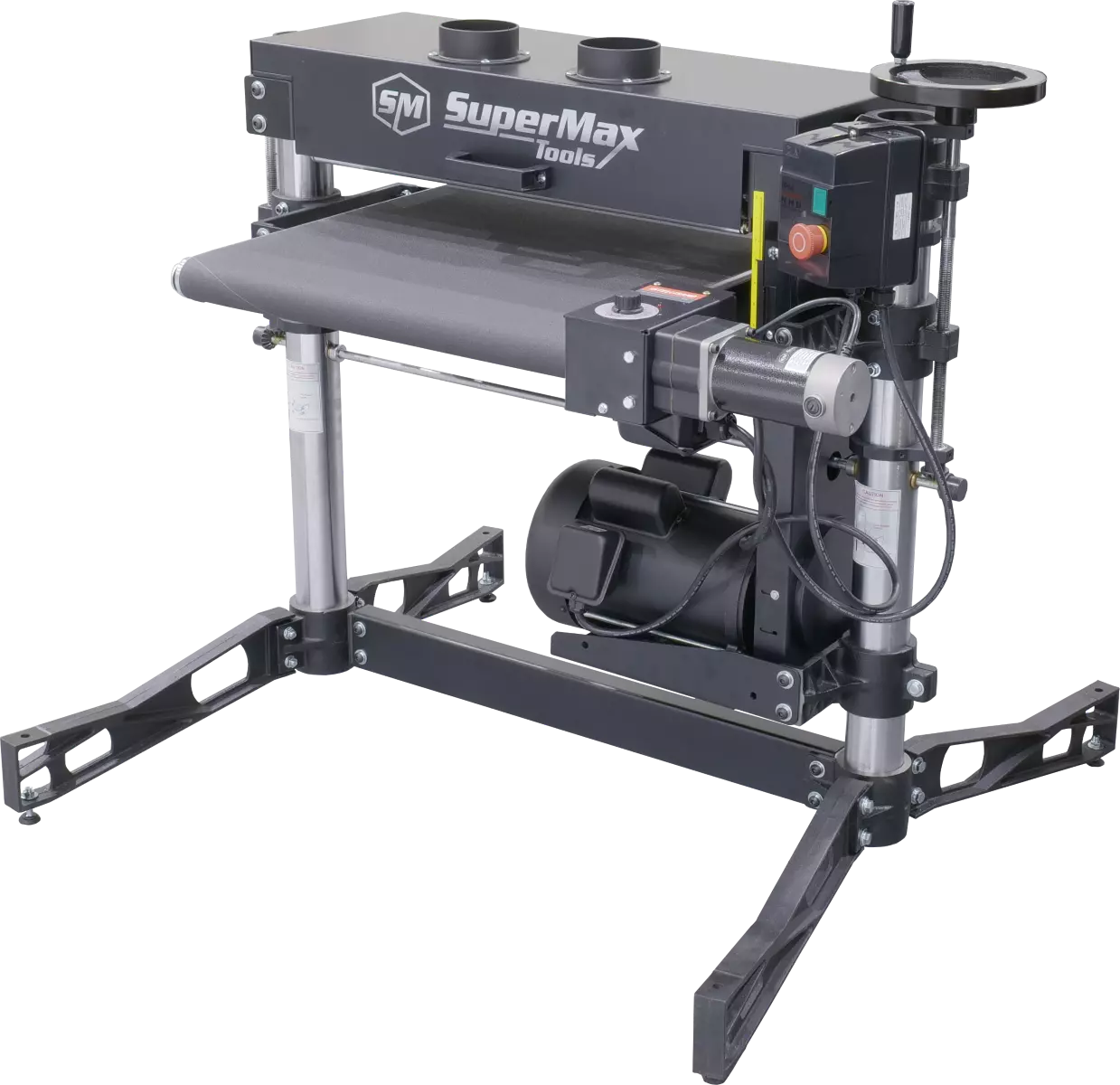

Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND® Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.

Features:

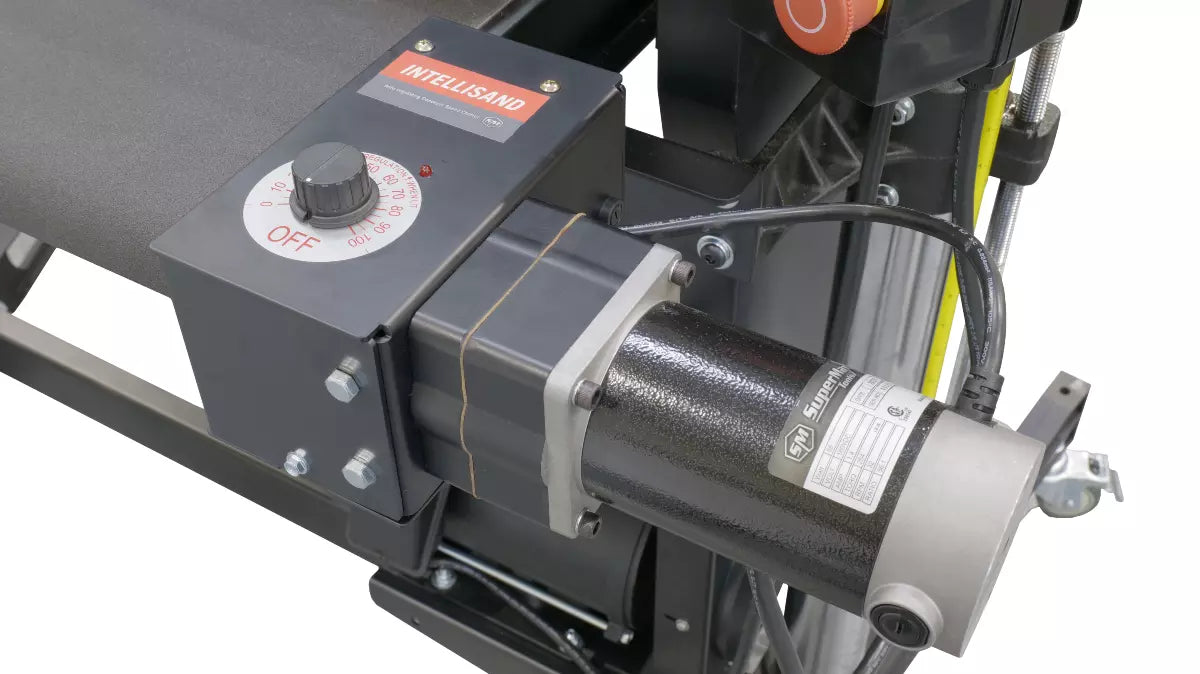

INTELLISAND® Technology: Automatically adjusts conveyor speed based on load
– Prevents gouging, damaging or burning stock
– Provides consistent finish even with varying grain pattern and density
– Greatly increases abrasive planing and dimensioning

  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010 across the width of the sander.
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter and thinner.

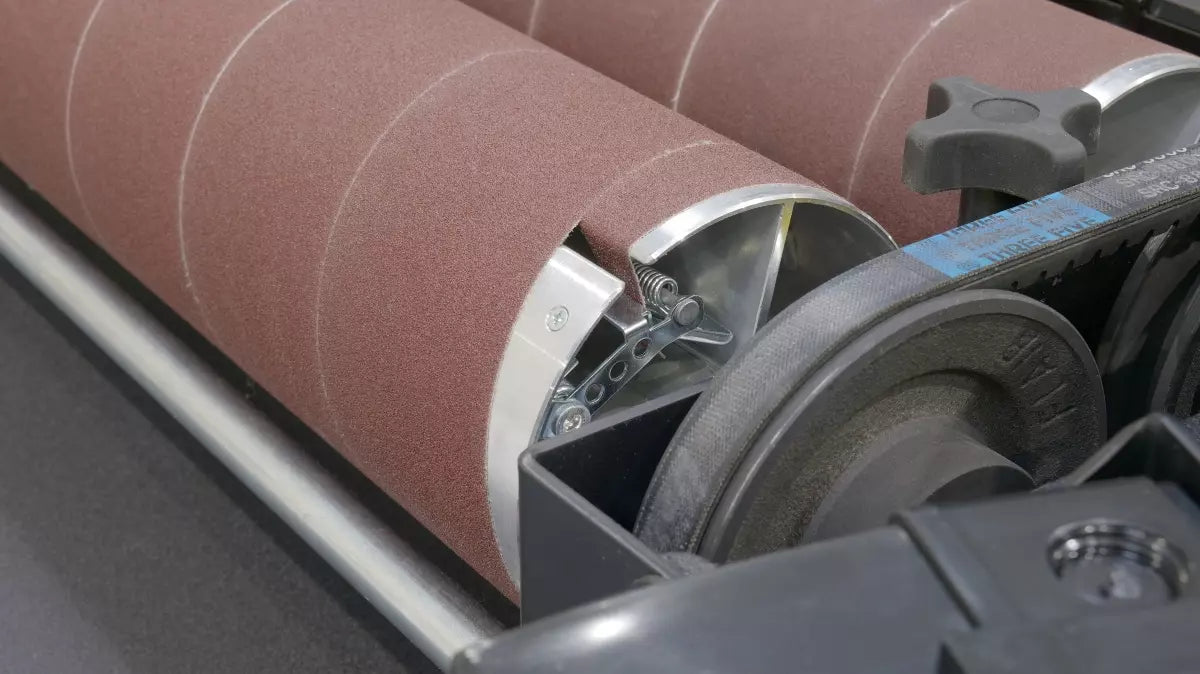

  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loosening, and overlapping.
  • Self-cooling drum prevents overheating and extends abrasive life.

Additional Details:

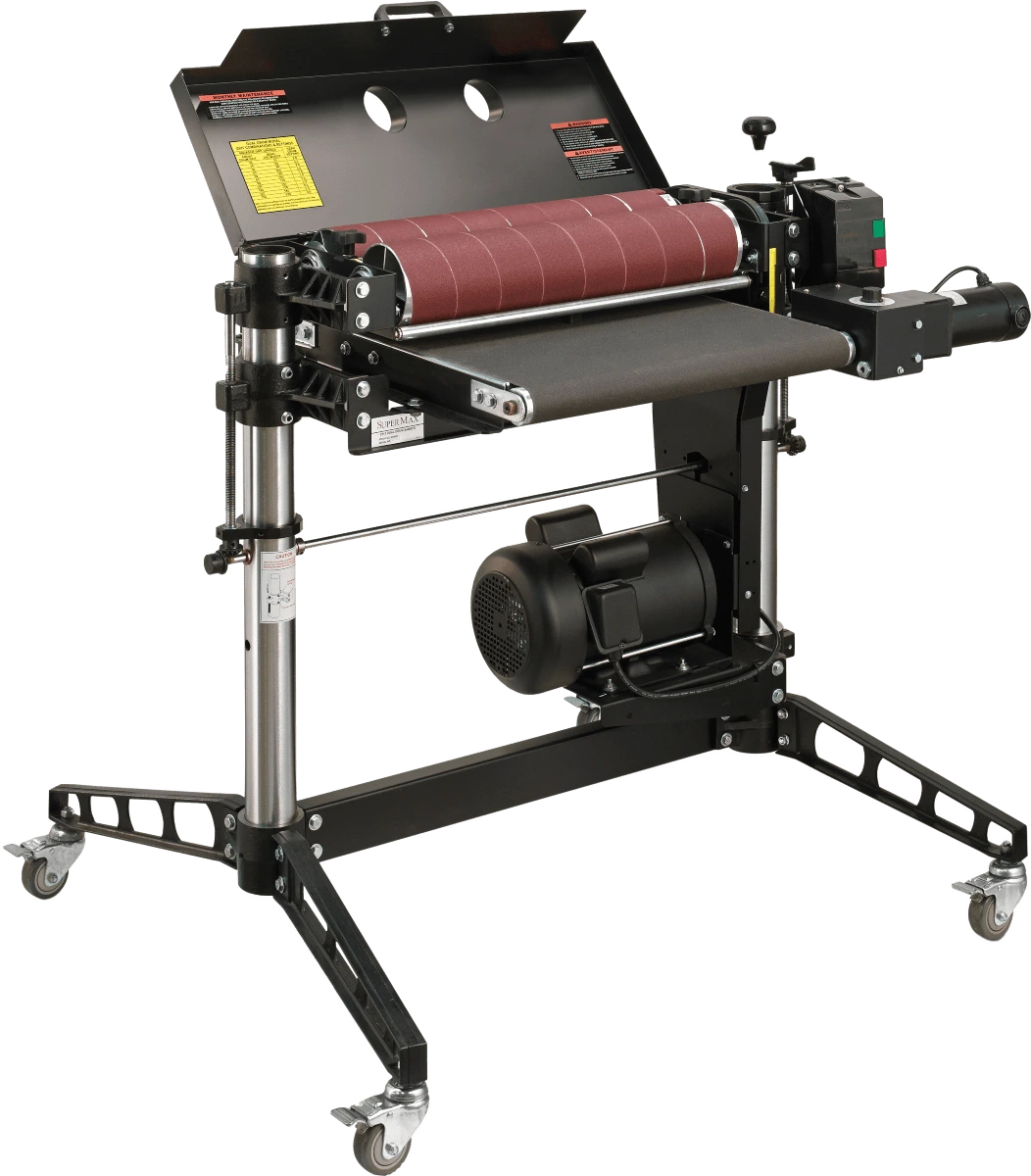

The 25×2 Double Drum Sander features INTELLISAND® Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor.

Sanding Capacity

  • Maximum Width (in): 25″
  • Minimum Length (in): 3-½″
  • Maximum Thickness (in): 6″
  • Minimum Thickness (in): 1/32″

Dimensions (H x W x D): 43″ x 46″ x 31″

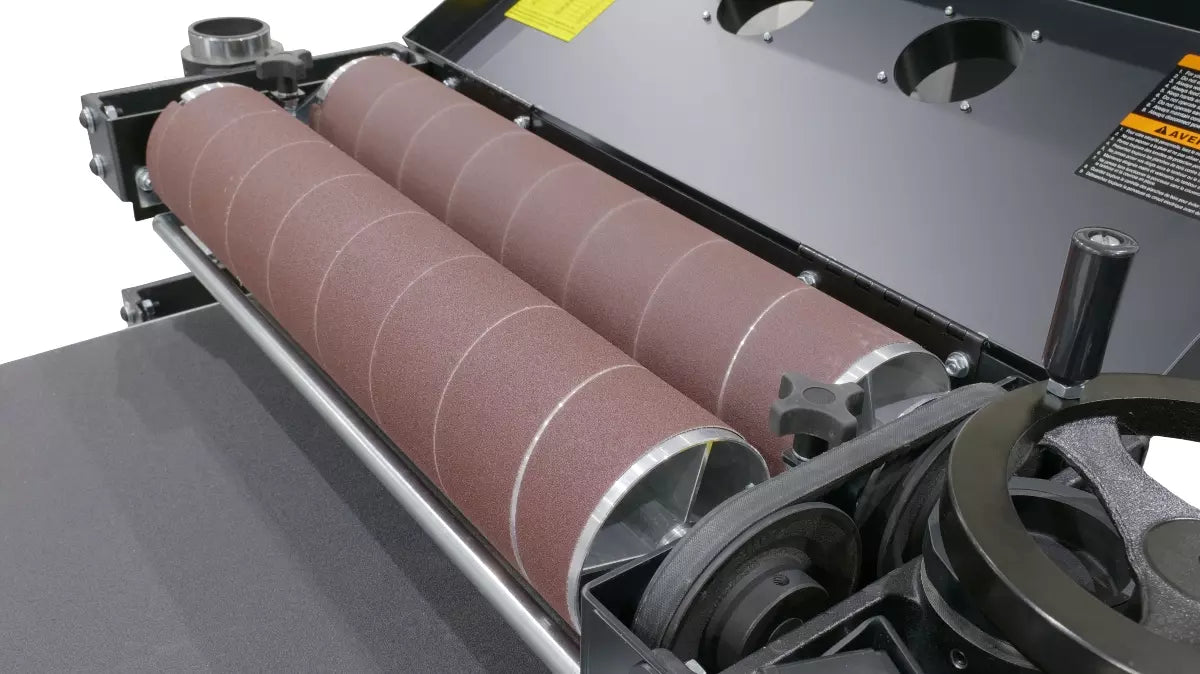

Drum (Extruded Aluminum): 5″ x 25″

Drum Speed: 1740 RPM

Dust Hood (Steel Hood, Hinged At Back): (2) 4″ Vacuum Ports, Min CFM: 1000 Recommended

Ball Bearing (1″): 4 sealed and permanently lubricated

Conveyor Motor: 100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM

Drive Motor (TEFC): 5 HP, 1 Phase

Power Requirements: 208-230V, 60Hz; 1 Phase, 30 Amp Service; 3 Phase 20 Amp Service

Shipping Weight: 475 lbs

Shipping Dimensions (L x W x H): 50″ x 44-½″ x 44-½″

Casters Included: No

Cord & Plug Included: No
