Product Description

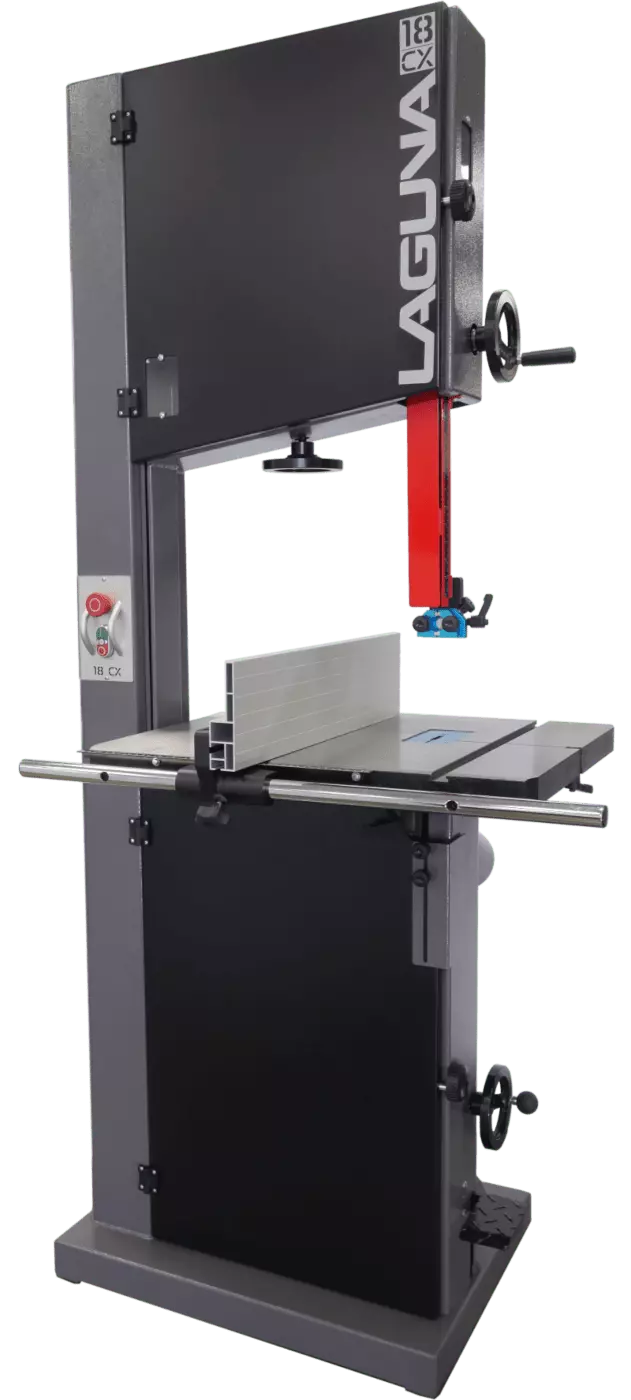

The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut with ease.

THIS MACHINE SOLD EXCLUSIVELY THROUGH OUR DEALER NETWORK

Features:
  • Motor: 1.75HP, 110V, 14/7 Amp.
  • Recommended Breaker: 20 Amp.
  • Magnetic Starter
  • Min-Max Blade Width: 1/8″ – 1-1/4″
  • Resaw Capacity: 16″
  • Throat: 18-7/32″
  • Blade Length: 145″

Details

Disc-Brake With Micro Switch

110V Outlet On Back For Light

Window For Tension

Window For Tracking

Magnetic Blade Tension Guide

Worm Gear & Pinion Upper Guide

10 Point Laguna Ceramic Guides

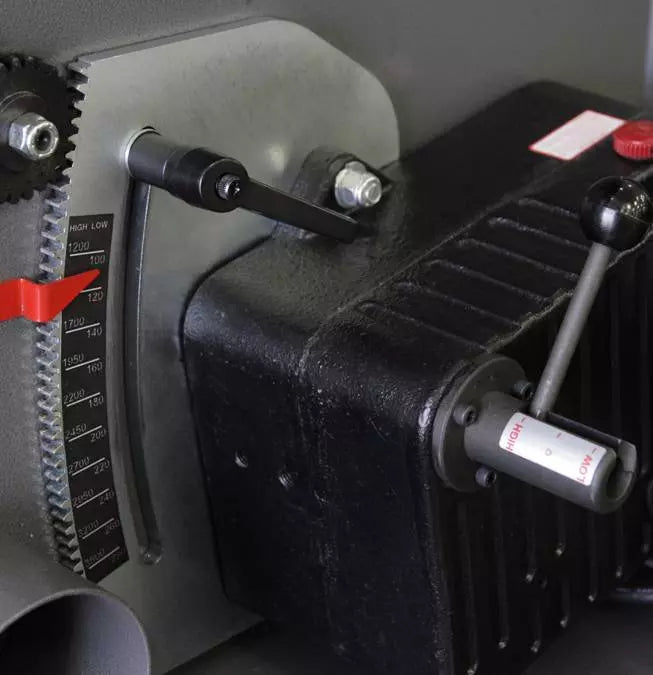

Mechanical Variable Speed Drive

Low Blade Speed: 100-290 FPM

High Speed Blade: 1200-3500 FPM

Anodized Insert With Micro Adjustment

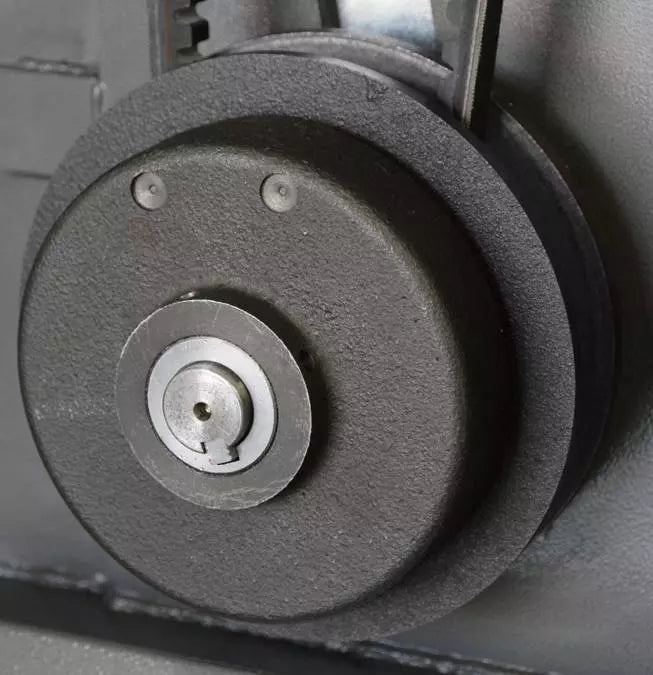

Dynamically Balanced Cast Iron Wheels

Urethane Single Piece Snap-On Tire

Cast Table Size: 20″ x 26″

NEMA Plug: 5-15P

Cord: 6 ft

Table Tilt: 6°, +45°

Quick-Release Tension

Hi/Low Anodized Aluminum Fence: 22-¾″ x 7-¼″ x 11/16″

Table Height: 38″

Dust Ports: 4″ x 2

Overall Height: 77-¾″

Dimensions (Base): 27″ x 20″

Dimensions (Overall): 38″ x 36″

Dimensions (Box): 82″ x 34″ x 36″

Weight (Net/Ship): 480/545 lbs

Shipping Dimensions (L x W x H): 55″ x 22″ x 25″
