Product Description

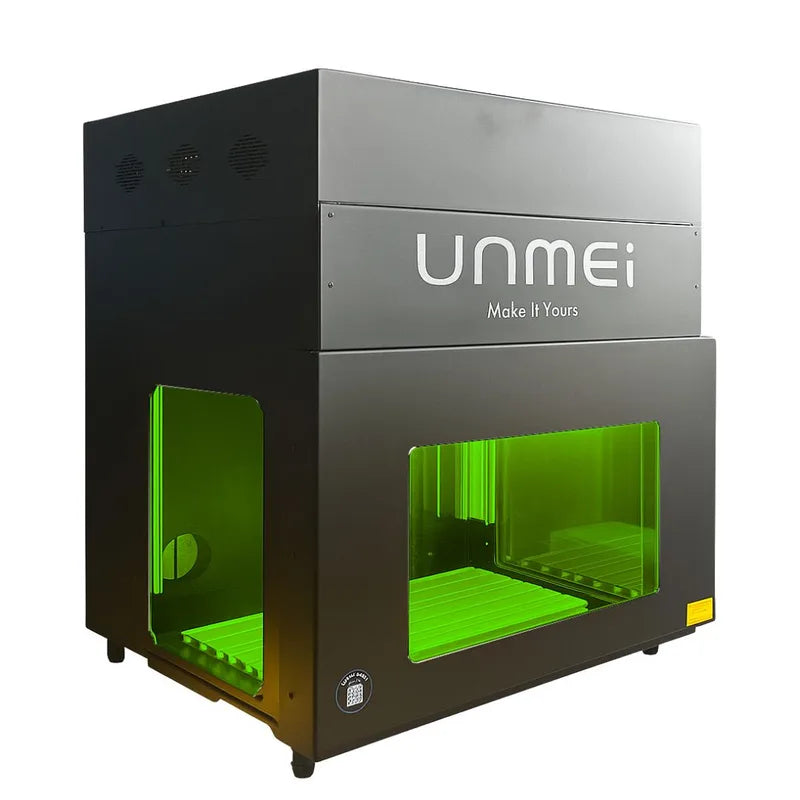

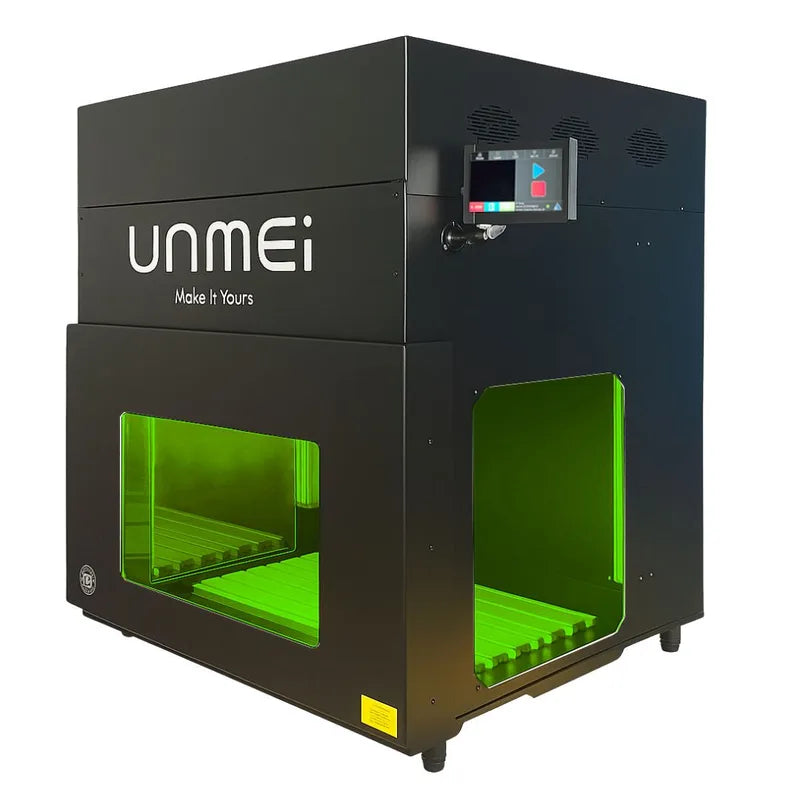

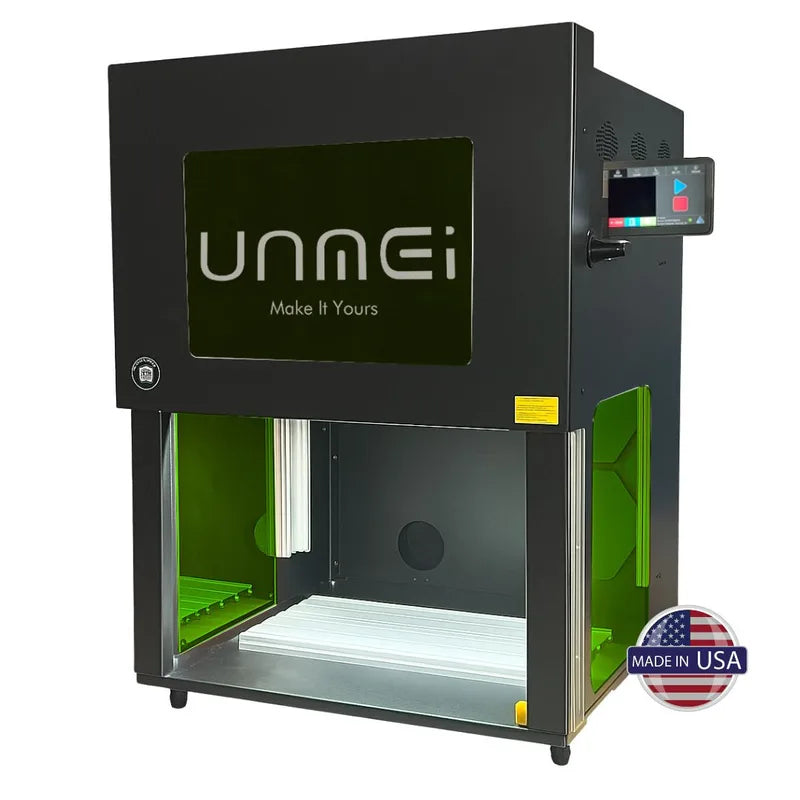

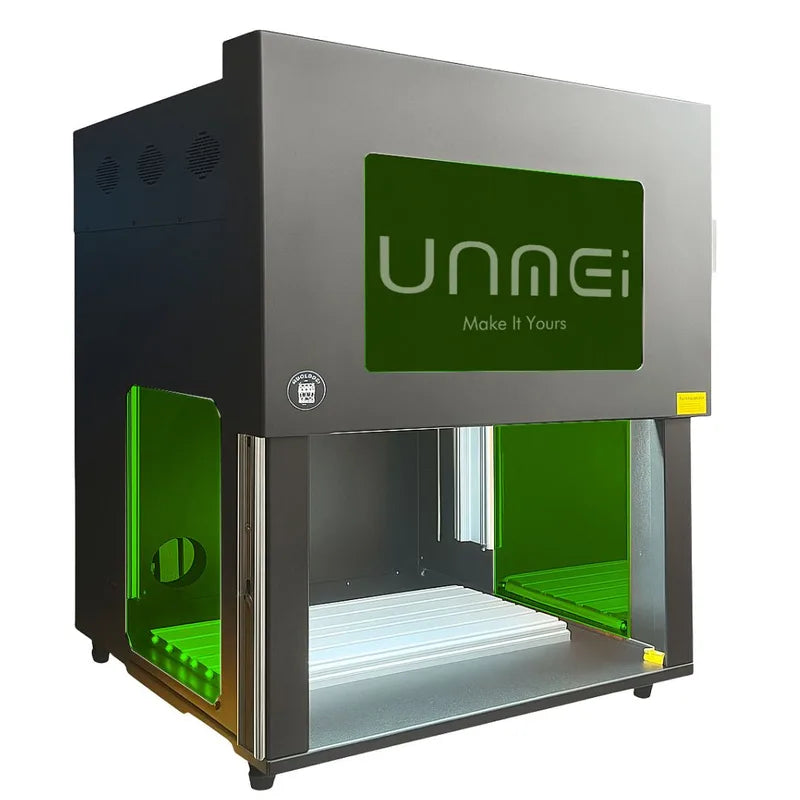

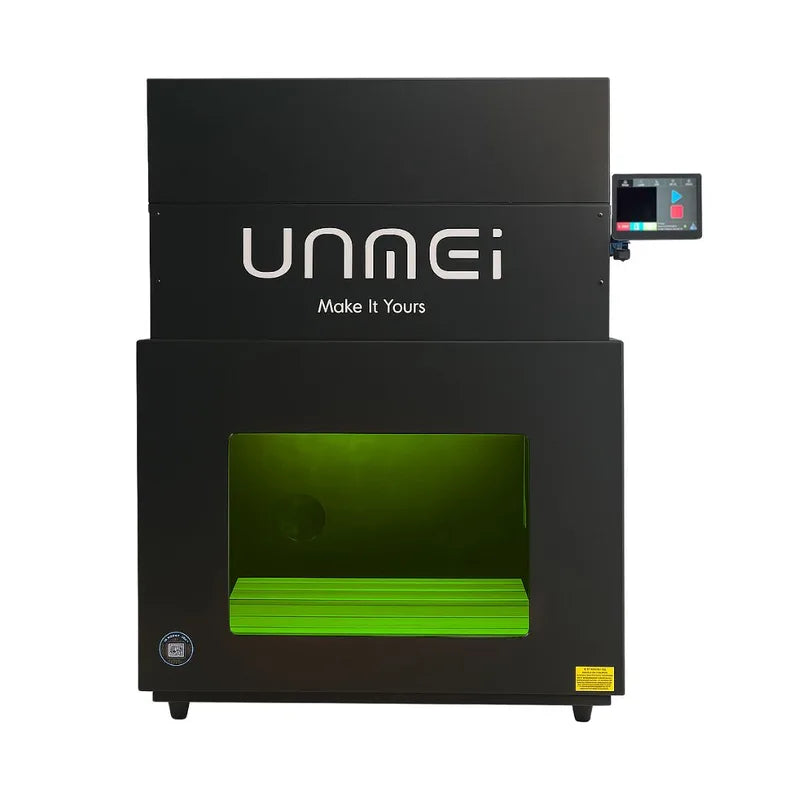

UNMEI: A revolutionary Fiber marker and engraver.

Having the latest state of the art RE4 control electronics/software 100% made in the USA.

New Unique Patent Pending Features (2025)

  • Whole Lens Correction (WLC) Technology — Edge-to-edge, pixel-accurate workspace capture using an external overview camera with FSL’s 256-point WLC calibration (vs. standard 4-point homography).
  • FSL ZCam 3D Scan Technology — Built-in 0.1 mm accuracy depth scanning for click-to-autofocus anywhere in the field.
  • Coaxial Camera with WLC (Optional) — Through-the-lens system using a dichroic mirror, captures 196 stitched images with WLC for ~10× higher effective resolution than standard overview. Shows exactly what the laser sees.

Optics & Imaging

  • Dual Camera Option — Combine overview + coaxial views for precision alignment within ±2 µm.
  • Focus Anywhere — Camera-based focus measurement anywhere in the marking field.

3D & Advanced Marking

  • True 3-Axis Dynamic Galvo (Optional) — Advanced 3D surface marking with patent-pending “Saw” mode for defocus resilience.
  • Full 3D Curved Surface Engraving — Upload STL/OBJ and wrap designs on cylinders, cones, spheres (no rotary needed).
  • 3D Relief Engraving — AI converts 2D images to 3D OBJ for 3D engraving and or engrave true 3D files.

Laser Performance

  • 1064 nm Laser — Up to 10× smaller spot size than CO₂; mark nearly any material.
  • Ultra-High Speed — Over 5,000 mm/s, typically 10–100× faster than gantry CO₂ lasers.
  • Superior Glass Engraving  100× more detail with clean edges (5 W+).
  • Multi-Color Metal Marking — Deep black, red, green, white, and more on steel.

Material Capabilities

  • No Surface Damage — Mark coated materials without harming the coating.
  • Fine Cutting — Micromachining up to 3 mm aluminum, 3 mm steel, and other metals.

Software & Automation

  • Browser-Based RE4 Software — Works on Windows, Mac, and Linux (demo).
  • AI Object Detection & Orientation — Cloud GPU processing for automatic recognition and alignment.

Accessories & Options

  • SYNCRO Rotary Attachment — True 4th-axis engraving on cylindrical objects with seamless rotation.
  • Power Options — 100W, 200W

Design & Support

  • Footprint — 26" × 28" desktop size, full 12" × 12" marking area.
  • Technical Support — Phone and email assistance.

Tech Specs

Weight & Dimensions
  • Engraving Area: 4" × 4" (100 × 100 mm) to 12" × 12" (300 × 300 mm)

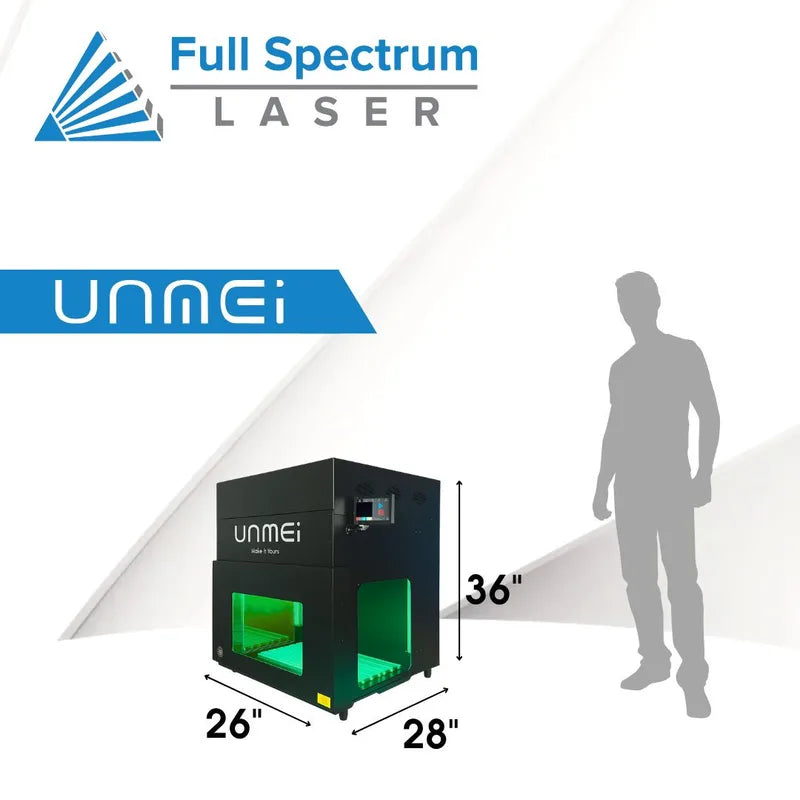

  • Machine Dimensions: 26" × 28" × 36"
  • Weight: 85 lbs
Laser
  • Laser Classification: Class 3a if closed (visible red dot), Class 4 if open
  • Laser Type: Fiber Laser
  • Laser Power: 100W, 200W
Power
  • Power Supply: AC 110 V native (220 V option available)
  • Gross Power: < 1000 W
System
  • Operation Modes: Precision Raster, Vector, or Combination

Mark Almost Any Material

UNMEI’s Fiber laser delivers clean, high-contrast results on a wide range of substrates.

  • Stainless Steel
  • Aluminum
  • Copper
  • Titanium
  • ABS / PC
  • Powder Coat
  • Glass
  • Ceramic
  • Silicon
  • Paper & Cardboard
  • Wood
  • Rubber

For details and techniques, see the Materials tab above.

3D Scan-Mark with FSL ZCam Autofocus

FSL ZCam 3D Scan Technology maps millions of depth points to create a live 3D workspace. It enables simultaneous engraving across multiple objects of varying heights and supports automatic click-to-autofocus anywhere in the field. Using the ZCam depth map, objects outside a typical field of view are split and marked with synchronized Z motion for consistent results.

The Perfect Accessories

SYNCRO Rotary

Engrave curved objects with synchronized rotation — up to 100× faster than gantry systems.

Use ZCam to auto-measure diameter; ideal for tumblers, glassware, and more.

Capable of surface and subsurface glass marking up to 4" deep. Increase wattage for higher speed and depth.

Fume extractors, specialty focus lenses, and more.

SYNCRO Rotary attachment

Dual Coaxial Camera with Liquid Lens

Varioptic liquid lens with a dichroic mirror and high-speed camera enables precise through-lens viewing, while a second camera provides a large overview. The coaxial camera places the laser spot repeatably within ~2 µm, delivering ultimate real-world-to-laser calibration.

Motorized Linear Extension Rail Options

Available in 500 mm and 1000 mm lengths; mounts to the bed and slides under the galvo. Two modes:

  • Repeat Job — Automatically make many copies in production.
  • Continuous Engraving — Scan a single galvo line (Y) while the rail synchronously shifts for up to 300 mm × 500 mm (12" × 20") continuous jobs with no line breaks.
