Product Description

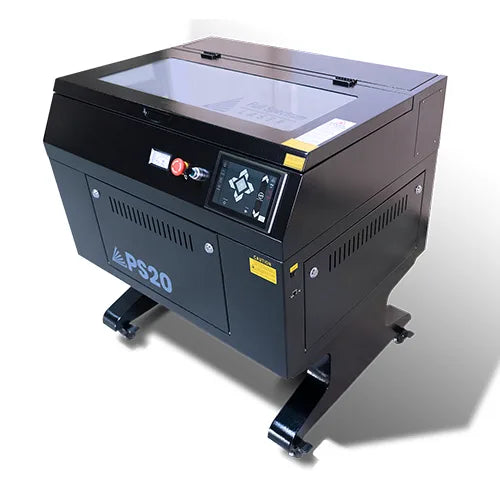

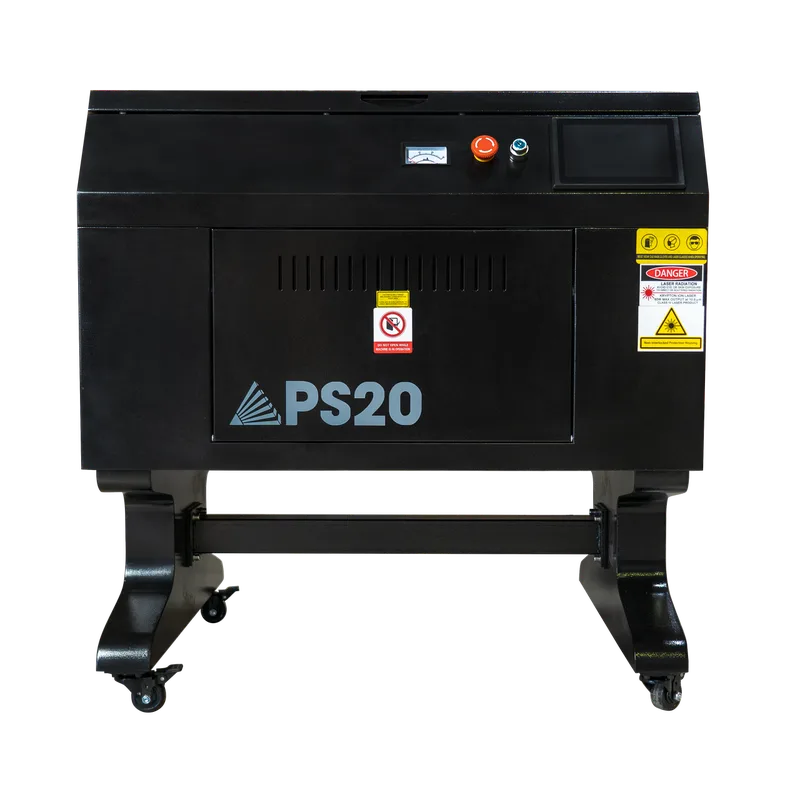

The PS20 (20"x12") laser cutting and engraving system comes standard with the industry-leading RetinaEngrave software and is designed for heavy use. It can even handle industry-scale production yet fits through a standard doorway.

The P-Series is perfect for business use, but it is also a great tool for home users who want to take their creations to the next level.

  • BROWSER BASED SOFTWARE - Windows, Mac and Linux compatible.

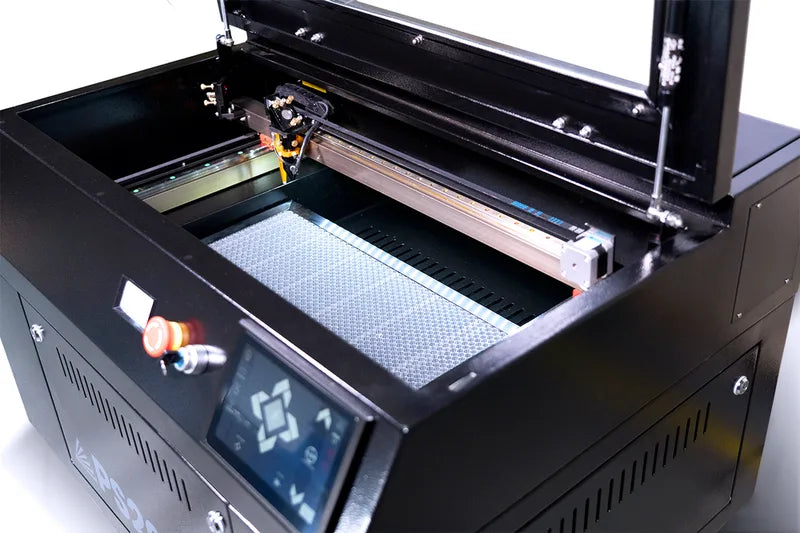

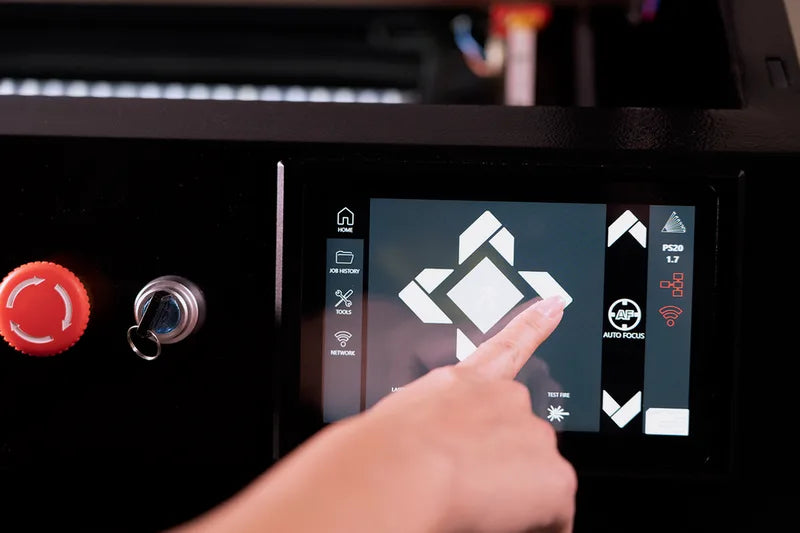

  • 7" LCD TOUCH SCREEN - allows users to control major functions right from the machine.
  • ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved.
  • MOTORIZED Z-TABLE - enables users to fit larger objects inside the work area.

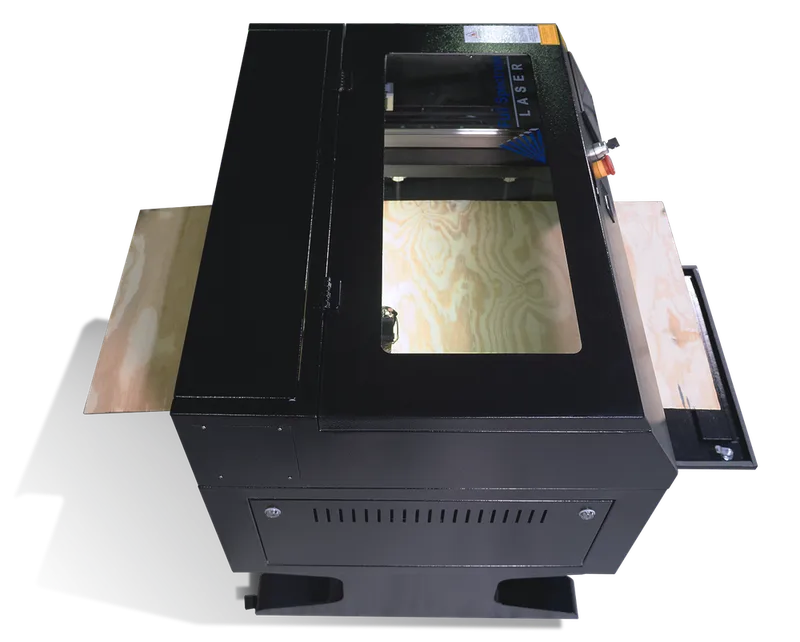

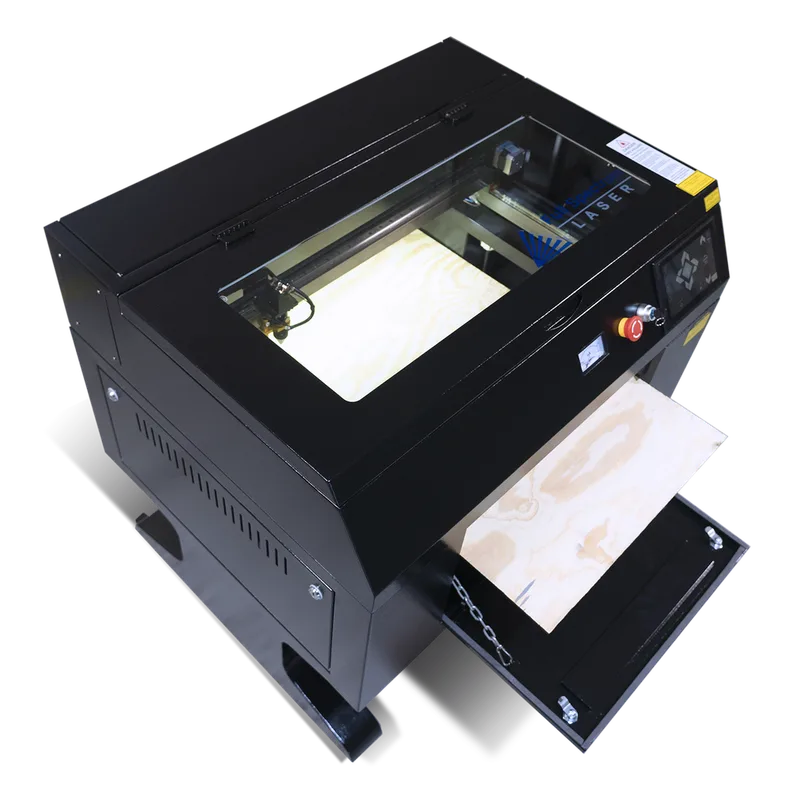

  • PASS-THROUGH DOORS - large sheets of material are no problem with this feature.
  • AUTO FOCUS - makes workflow faster and more precise.
  • TECHNICAL SUPPORT via phone and email.
  • 2 YEAR WARRANTY

Weight & Dimensions
  • Engraving Area: 20" x 12" (508mm x 305mm)

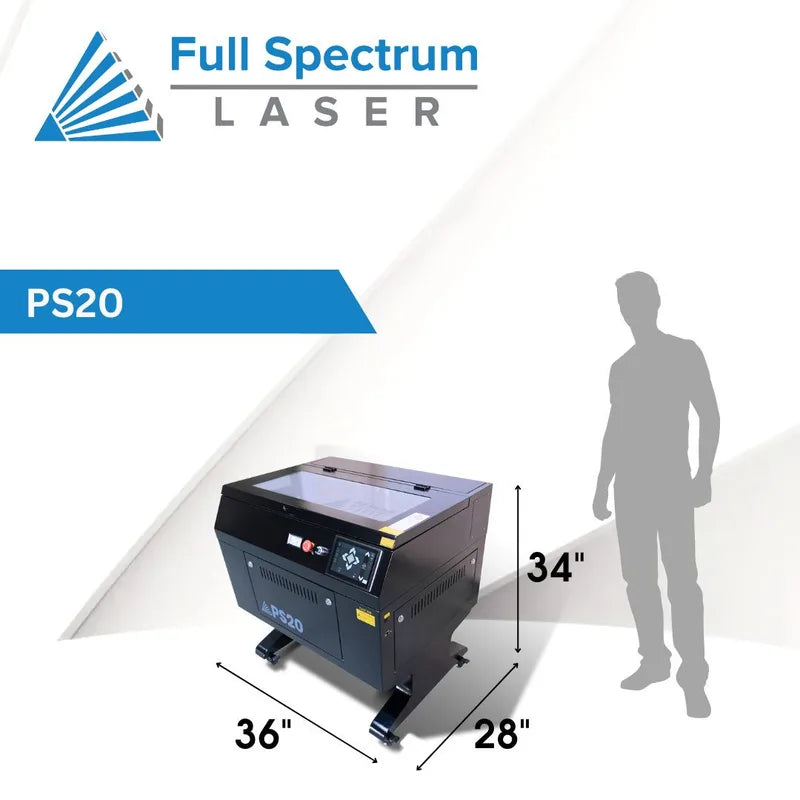

  • Machine Dimensions: 37" x 27.5" x 35.375" (939.8mm x 698mm x 898.525mm)
  • Weight: 198 lbs (90 kg)
  • Z-Table Range: 8"
Laser
  • Laser Classification: Class 3R
  • Laser Type: Sealed CO2 Laser Tube
  • Laser Power: 45W
  • Focus Lens Included: 2.5"
Power
  • Power Supply: AC 110V native (220V option available)
  • Gross Power: < 1000W
System
  • Operation Modes: Precision Raster, Vector or Combined Modes
  • Motion Control: High-Speed Stepper Motors
  • Operating Temperature: 0C - 45C

Professional Grade Laser Systems

The next step in precision, power and performance. Designed for industry-scale production and heavy usage output. Now featuring LCD touchscreen controls and the powerful, easy-to-use RetinaEngrave v3.0 laser control software.

Newly advanced Professional Grade Laser Systems are now available from Full Spectrum Laser. Exclusive innovations include new, feature-packed LCD touchscreen controls and the powerful, easy-to-use RetinaEngrave v3.0 laser control software, highlighting a full design suite and compatibility with Mac, PC or Linux. The new era of professional grade laser systems has arrived!

The Best Laser
Control Software
on the Market!

This powerful, browser-based software lives right on your laser and is accessed using your favorite browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.

Welcome to the future of laser control & design software!

PS20 at a glance


Standard Laser Tube: 45W CO2
Laser Tube Upgrades: 75W
X-Y Working Area: 20" x 12"
Working Z-Height: 8"
Motorized Z-Tables: Yes
Pass-Through Doors: Yes
Power Requirements: 120V AC
Rotary Accessory

The Perfect Accessories

Engrave curved objects with a rotary attachment. Work with tumblers, glassware and more.

Upgrade your cooling system for peak performance of the laser.

Increase your laser tube power to accelerate cutting speed and marking ability.

...plus fume extractors, specialty focus lenses and more!Four Models to Meet your Needs and Budget
