Product Description

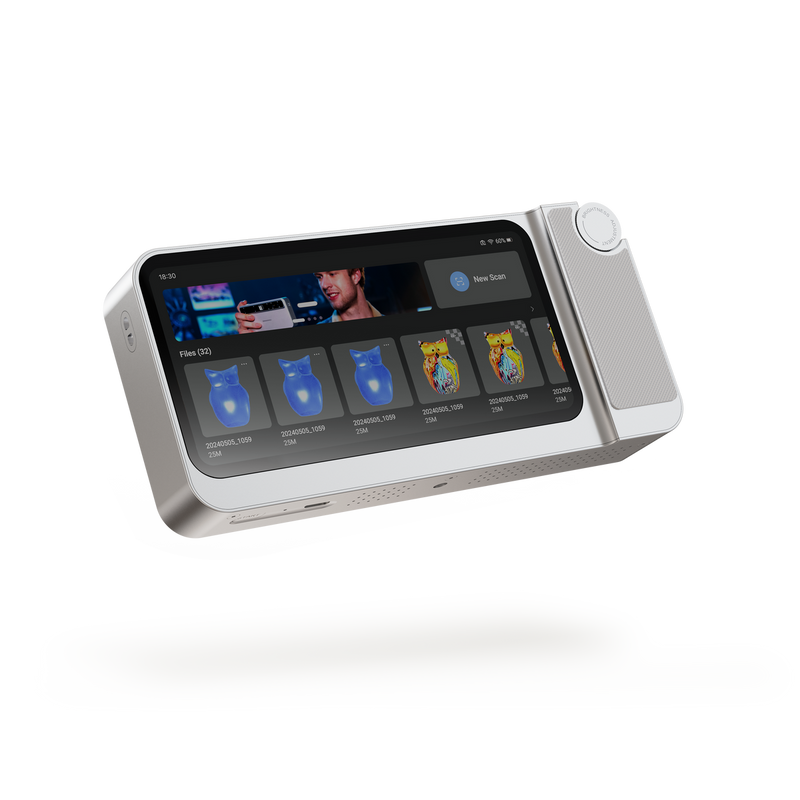

  • All-in-One Design: Toucan 3D scanner features an all-in-one design that combines scanning, editing, modeling, and exporting in a single device. It processes scan data without needing a computer connection and offers smartphone-like portabilityeasy to carry and use anywhere.
  • Wide Scanning Range: Equipped with a high-performance MEMS projection system, Toucan can scan small objects such as jewelry, figurines, and auto parts as small as 135 × 185 mm, and also handle large items like sofas and cars up to 1000 × 750 mm. For best results, keep the working distance between 200 and 1000 mm during scanning.
  • User-Friendly Operation: Toucan features a multi-level damping adjustment wheel and quick-access buttons for intuitive and efficient control. The wheel adjusts scan brightness, screen brightness, and model zoom, while the shortcut buttons allow one-touch start, pause, and stop of scanning, as well as taking single photos of the object.
  • Exceptional Performance Specs: 3DMakerpro Toucan adopts blue-light technology to achieve up to 0.03 mm accuracy and 0.05 mm resolution. With a built-in 48MP color camera featuring 9-axis position sensor, it captures fine details and enhances modeling efficiency, turning real-world objects into high-quality digital models with ease.

Performance Parameters

Toucan 3D Scanner

Scan Type:

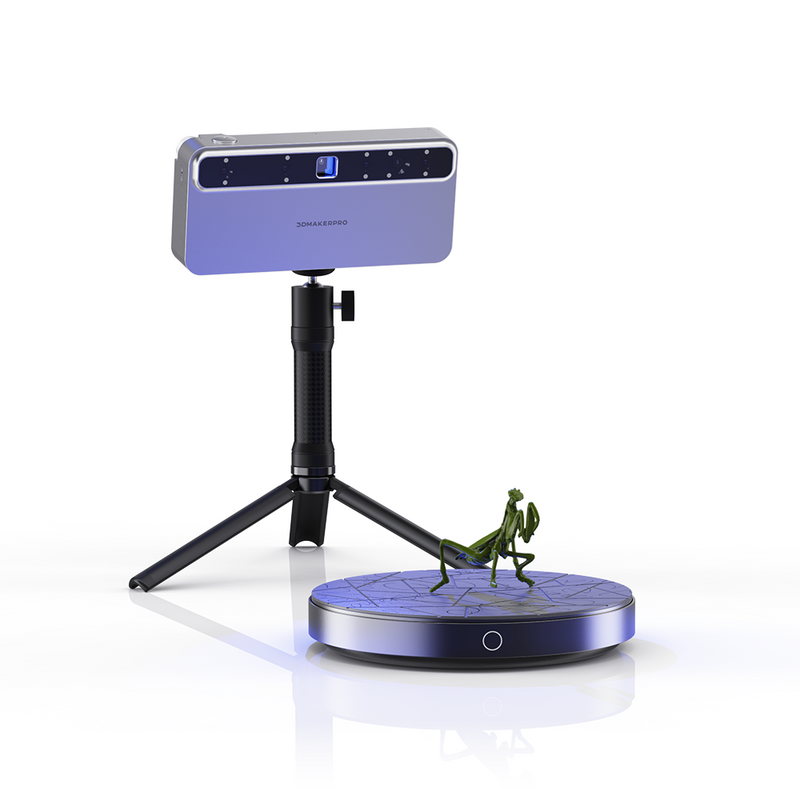

Continuous Handheld Scan/ Photo Scan / Table Scan

Camera:

3D Cameras *4
48 MP RGB Camera *1
Light Soure:
Blue Laser Structured Light
(Class1/Class3R)
Single-Frame Accuracy:
≤ 0.03mm (Small)/ ≤ 0.10mm (Large)
Resolution:
≤ 0.03mm (Fixed Shot)/ ≤ 0.05mm (Small)/ ≤ 0.10mm (Large)
Scanning Range (FOV):
135×185 mm (Small) / 1000×750 mm (Large)
Working distance:
200–1000 mm
Scan Speed:
Up to 15 fps
Processor:
8-core 2.4 GHz CPU + Mali-G52 GPU
Memory/ Built-in Storage:
32 GB DDR4 / 256 GB eMMC
Battery:
6600 mAh
Connectivity:
Wi-Fi 6, Bluetooth4.1, Interface: USB-C
Sensors & Interaction:
Position Sensor: 9-axis IMU
Tracking Method: Features/ Markers/ Global Markers
Button: 2
Scroll Wheel : 1
Volume:
200×93×37.5mm
Weight:
735g

Manual:

TOUCAN MANUAL V1.2
