Product Description

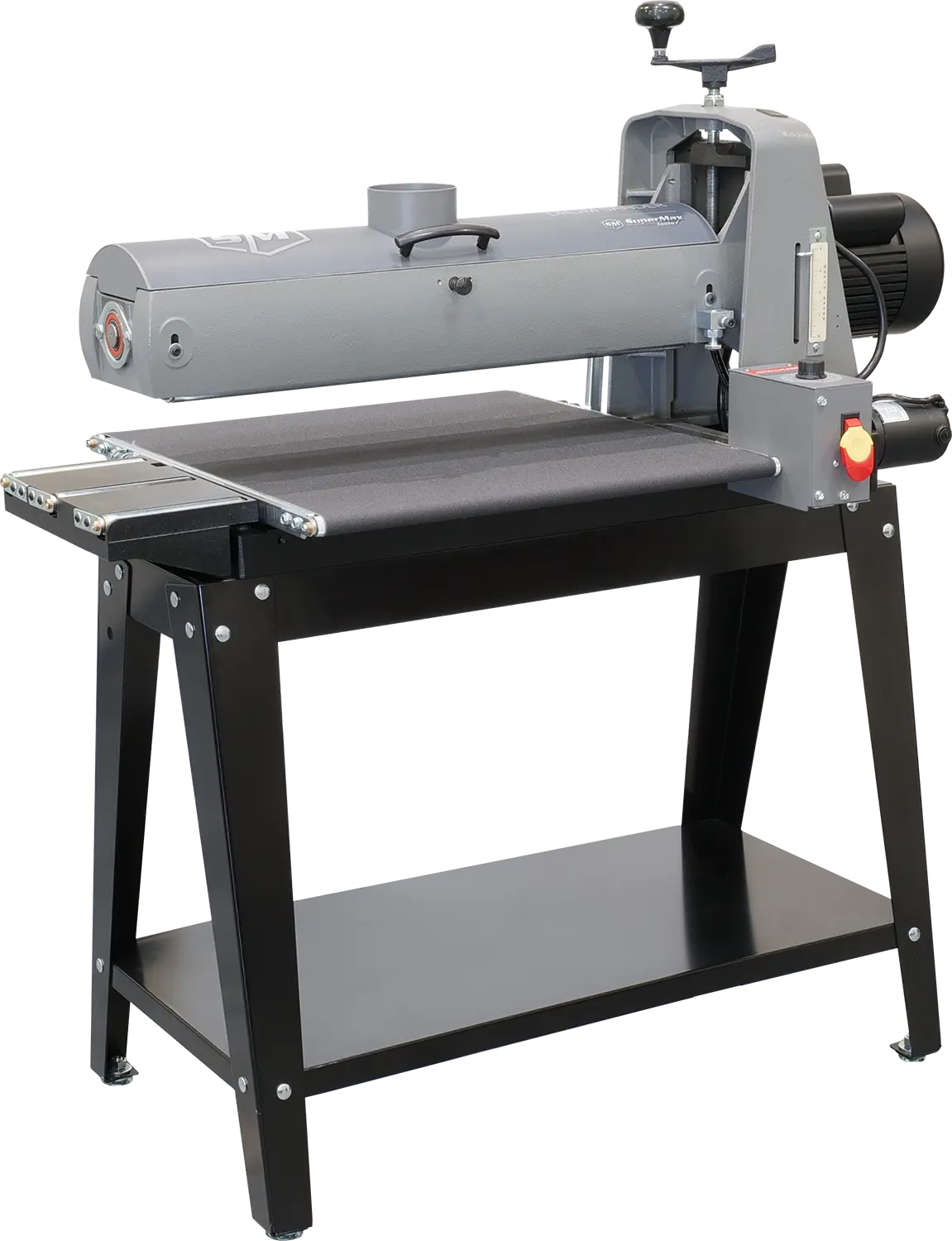

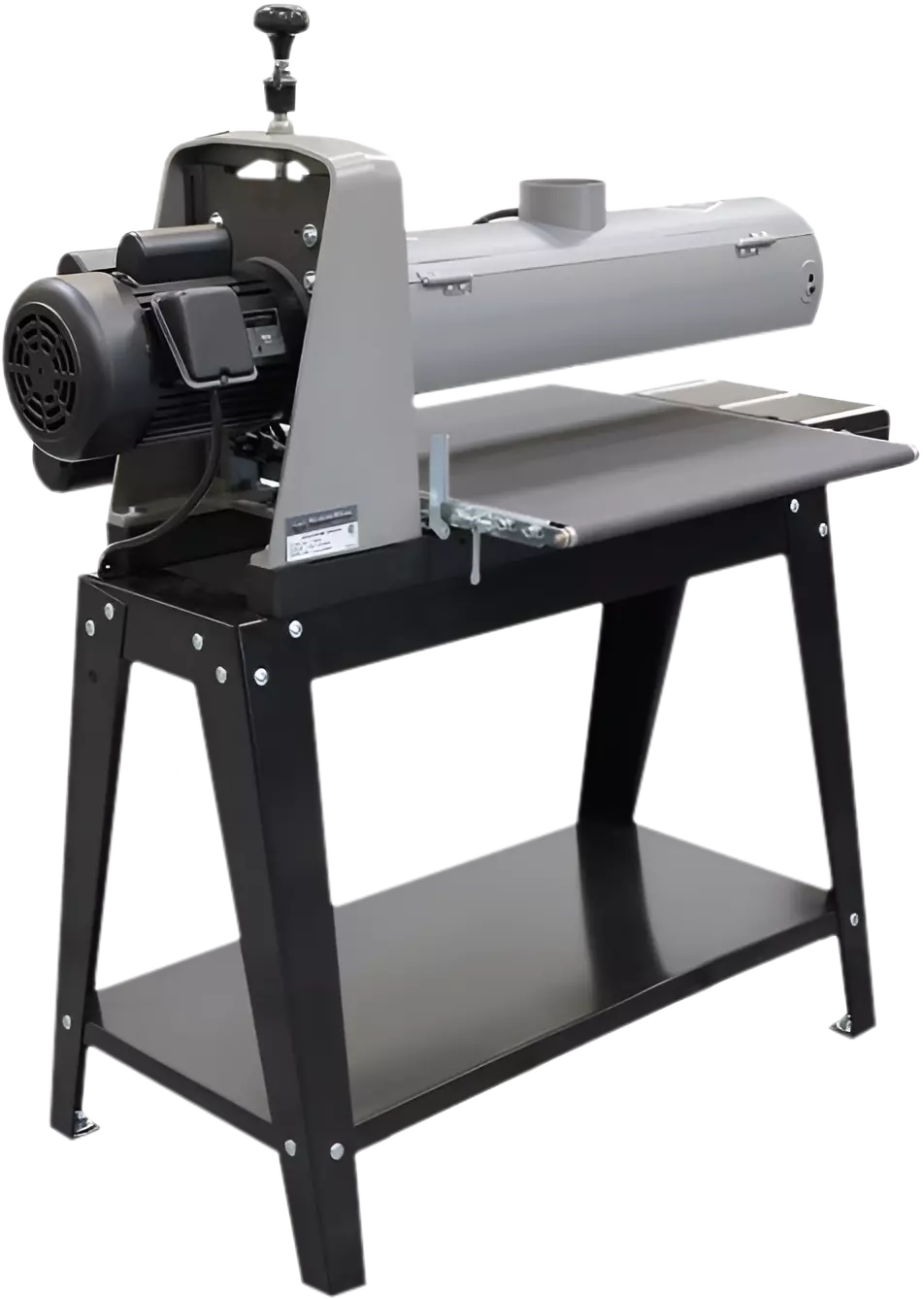

The SuperMax® 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25″ in a single pass, and up to 50″ in a double pass. Expand the scope of projects you’re able to complete, while increasing speed and consistency in which you’re able to do them!

The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase.

Features:

  • 25″ Sanding In A Single Pass, 50″ In A Double Pass

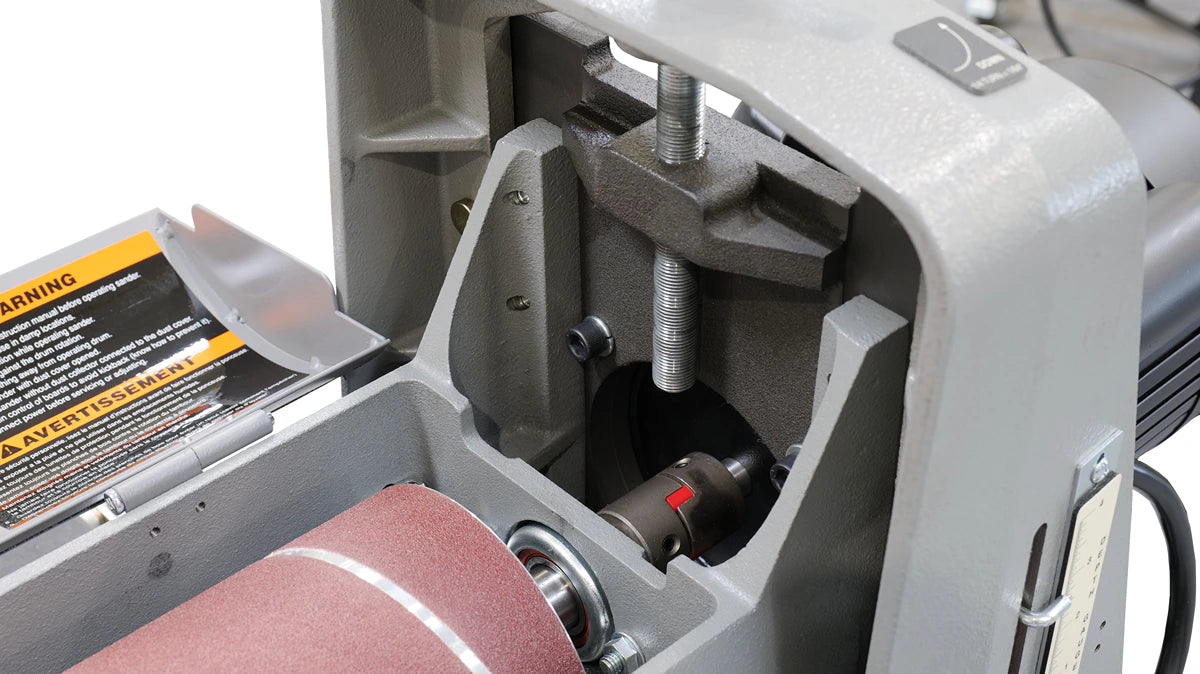

  • More Room For Easy Access To Abrasives – No Special Tool Needed

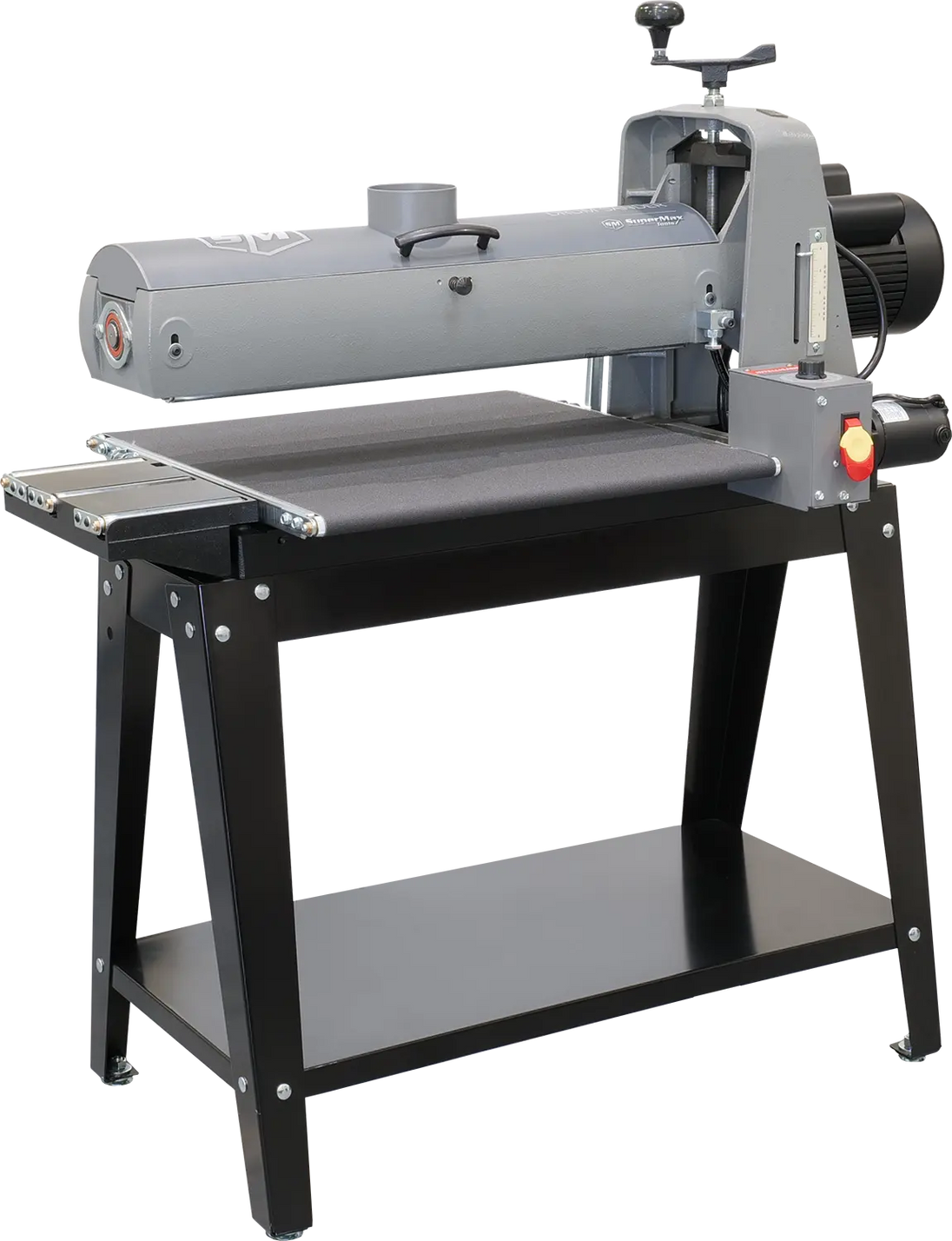

  • New Mobile Base Helps Stand And Machine To Move With Ease

Additional Details:

Maximum Sanding Width: 50″ (Two Passes)

Minimum Sanding Length: 2-¼″

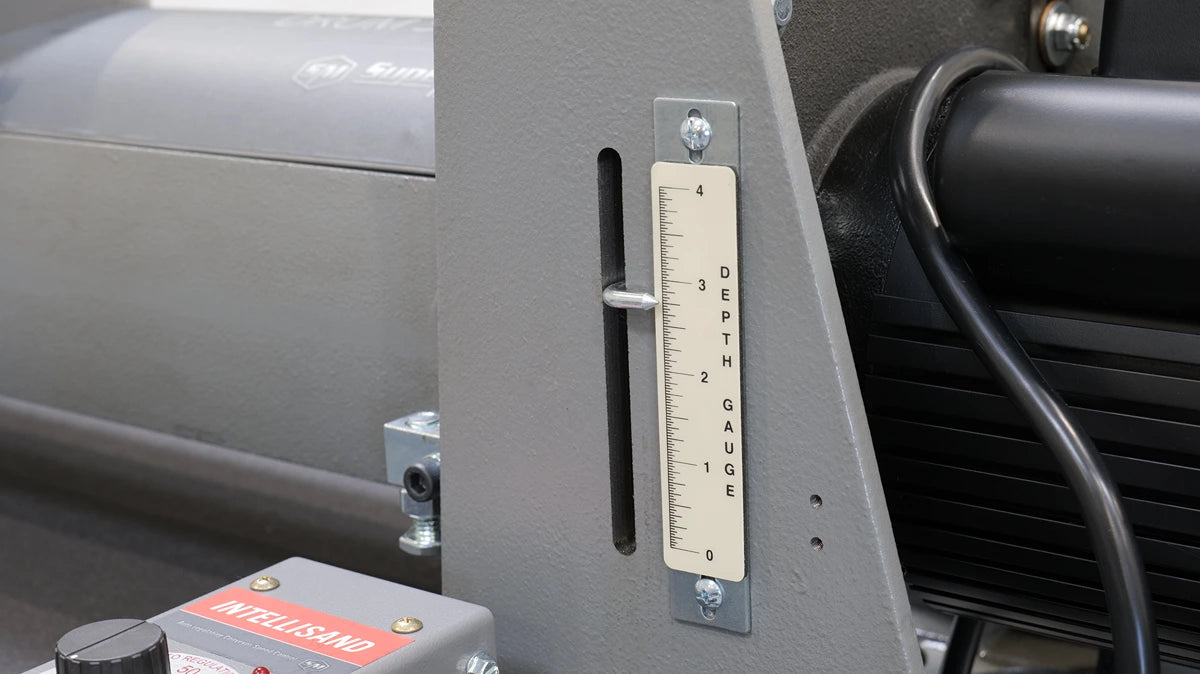

Maximum Sanding Thickness: 4″

Minimum Sanding Thickness: 1/32″

Dimensions (D x W x H): 27″ x 46″ x 53″ (On Stand)

Drum: 5″ x 25″ Extruded Aluminum

Drum Speed: 1740 RPM

Drum Speed: 1740 RPM

Dust Hood: 1 – 4″ Vacuum Port, Min. 600 CFM Recommended

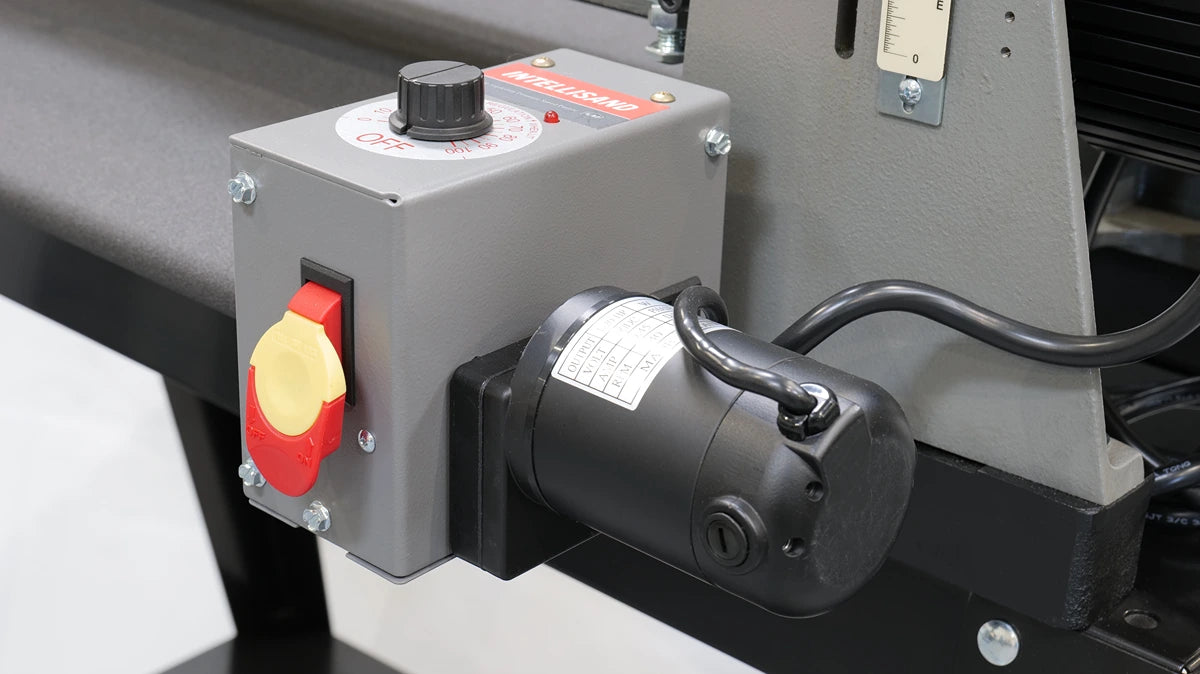

Conveyor Motor: 43 in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM

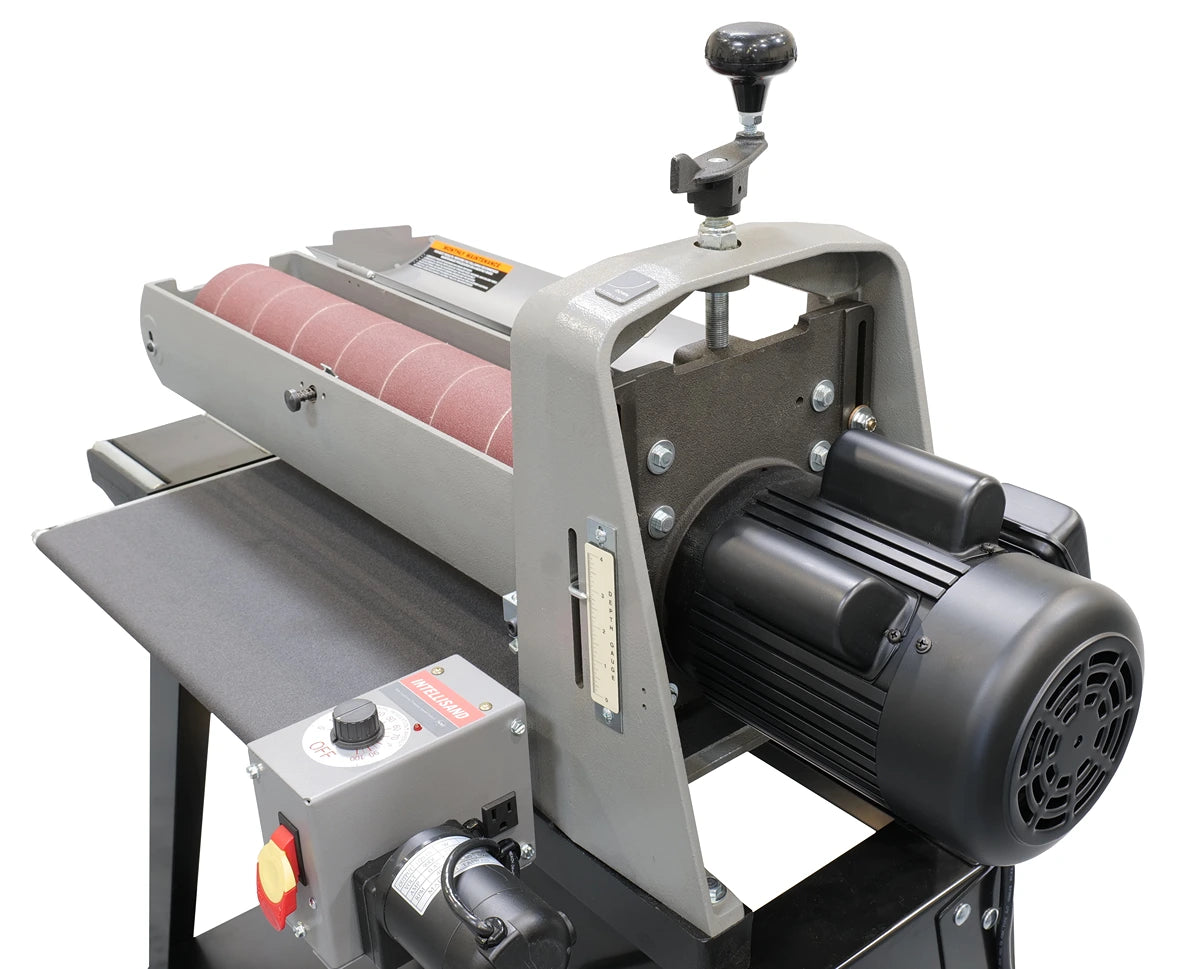

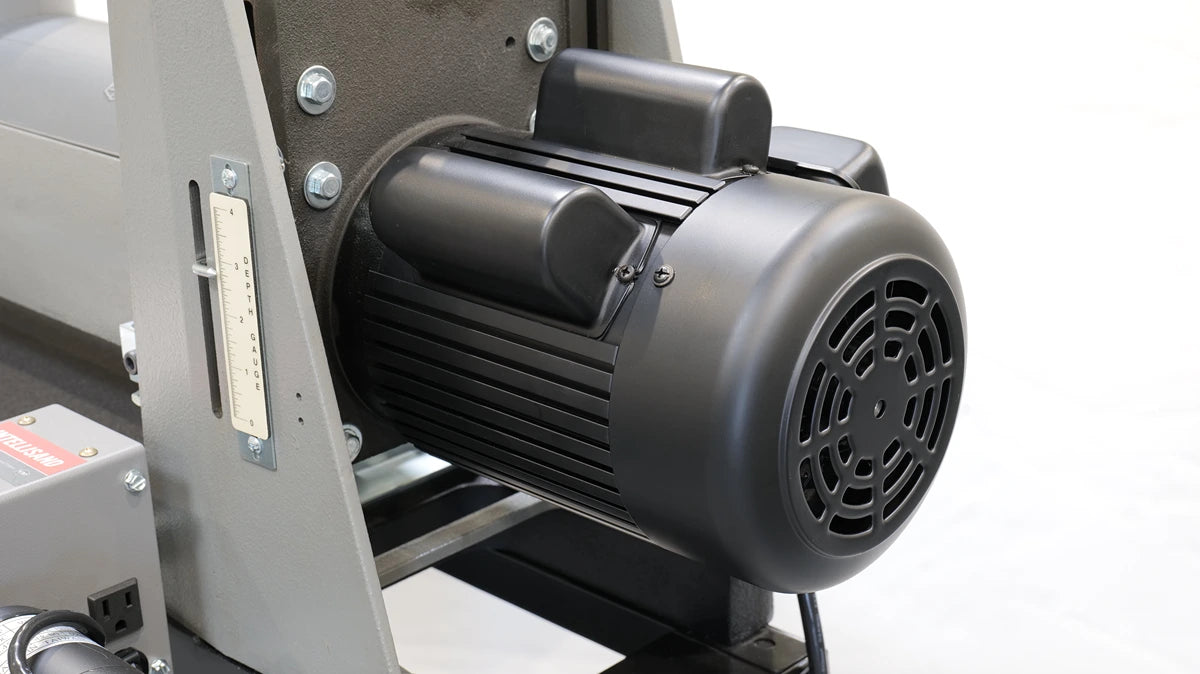

Drive Motor (TEFC): 1-¾ HP

Power Requirements: 110 V 20 amp

Table Height (Floor To Top Of Table): 33″

Shipping Weight (lbs): 369 (3 boxes including stand)

Shipping Dimensions (L x W x H): 45″ x 16″ x 24″

NEMA Plug:  5-15P
